Polyurea Flake 4-Car Garage Floor in Hawthorn Woods, IL

We put a polyurea flake floor with a slip-resistant topcoat on a new 950 sq ft, 4-car garage slab in Hawthorn Woods.

  • 5.0 · 122 Google reviews
  • Lifetime warranty
  • Licensed & insured

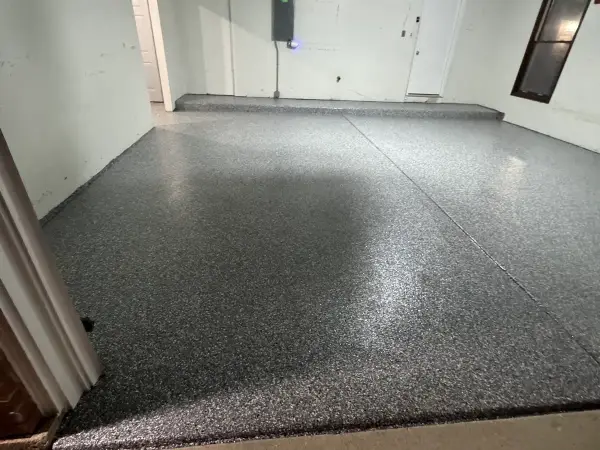

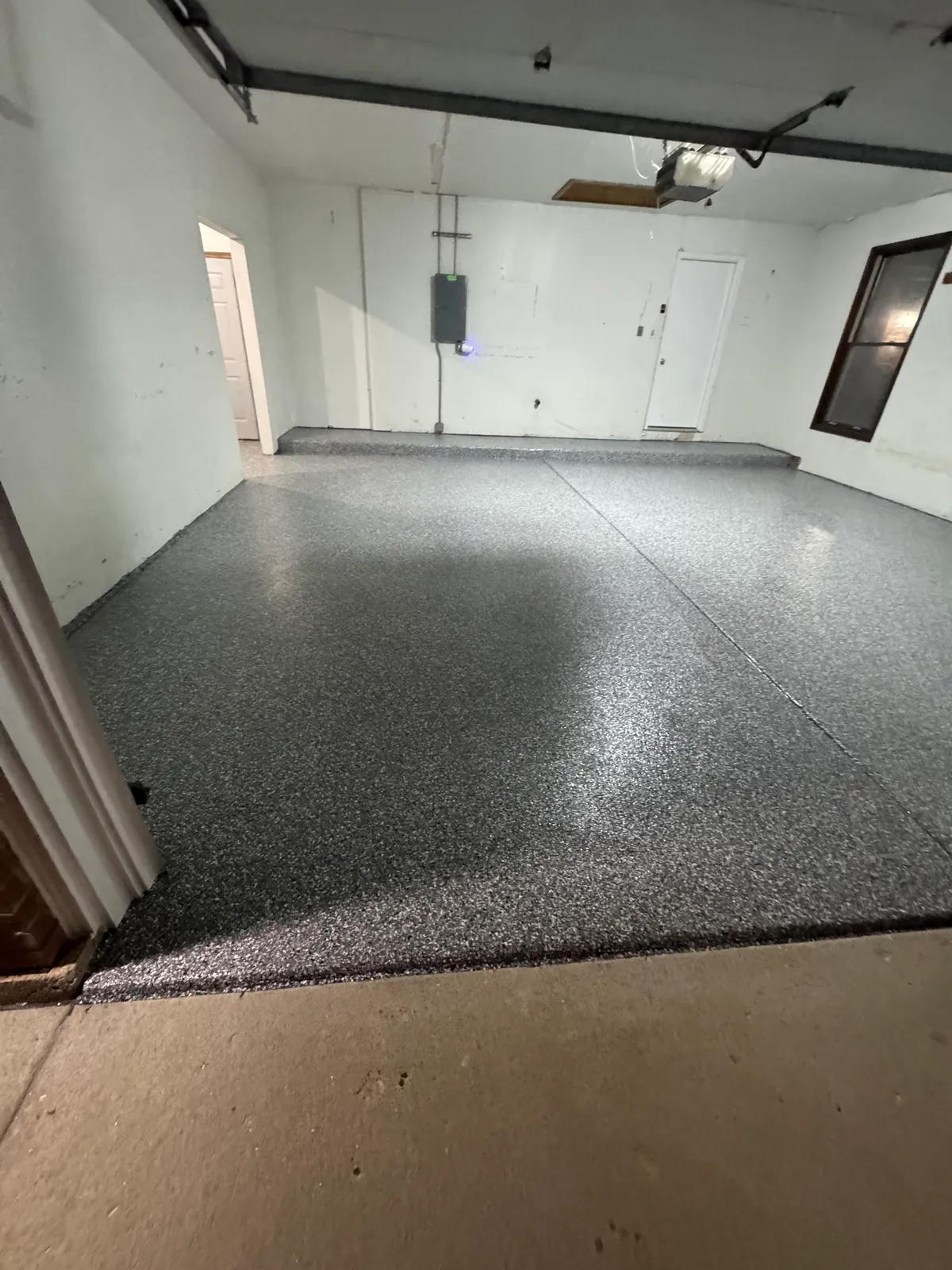

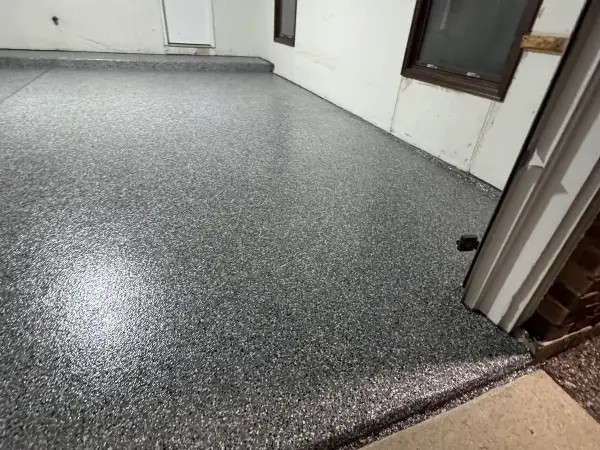

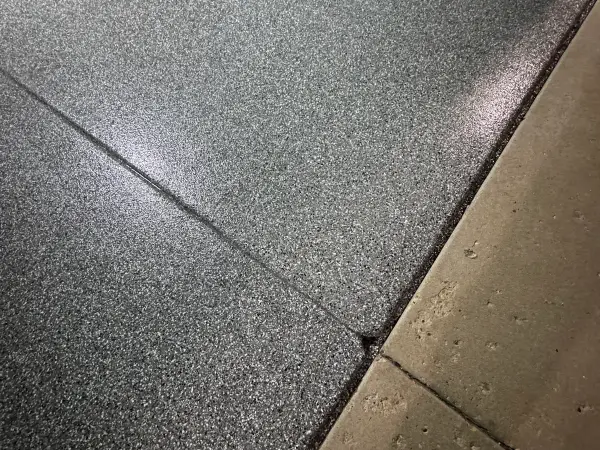

Glossy gray flake polyurea garage floor finished in Hawthorn Woods, IL

What we did

This was a big one: a 4-car garage with 950 square feet of floor once we counted the outside edge. The concrete was new, with no cracks and no old coating on it, which is about as clean a starting point as we ever get. With nothing to strip and no cracks to fill, our crew could put the whole day into prep and getting each layer down right.

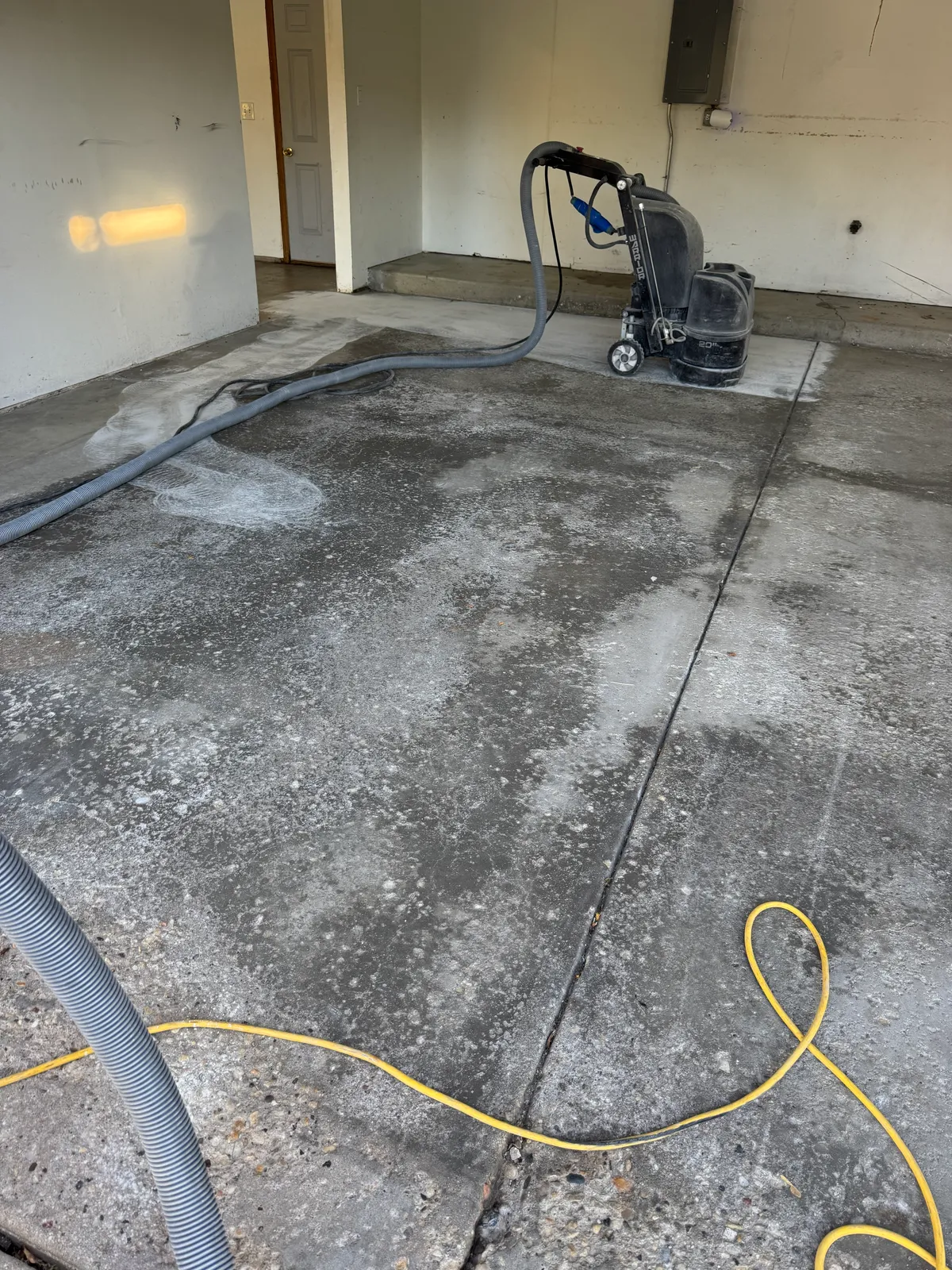

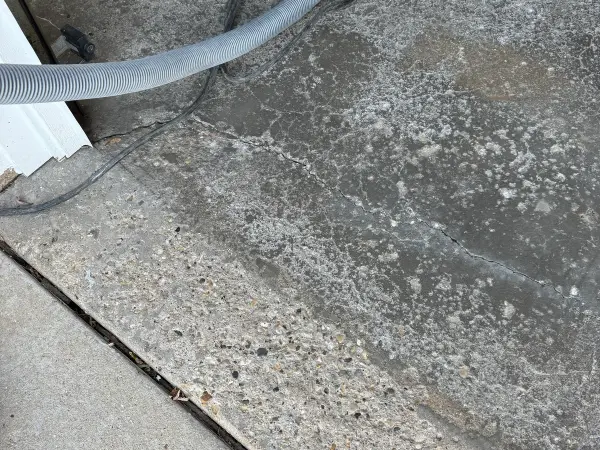

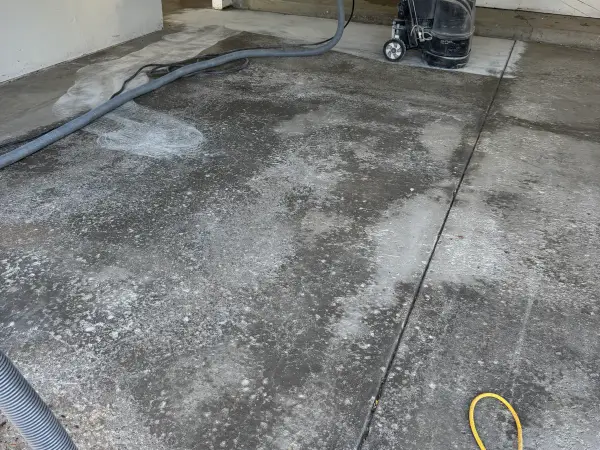

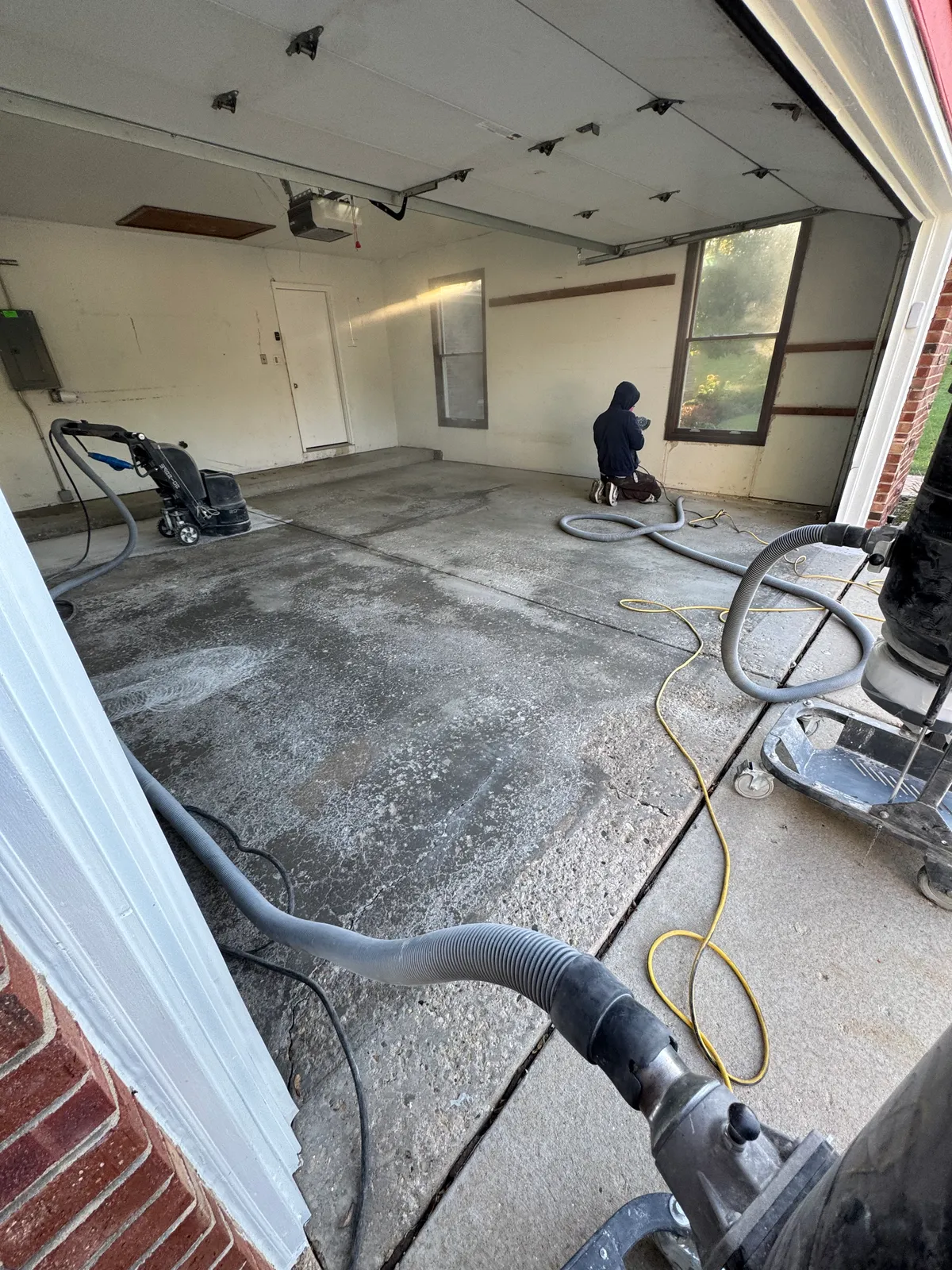

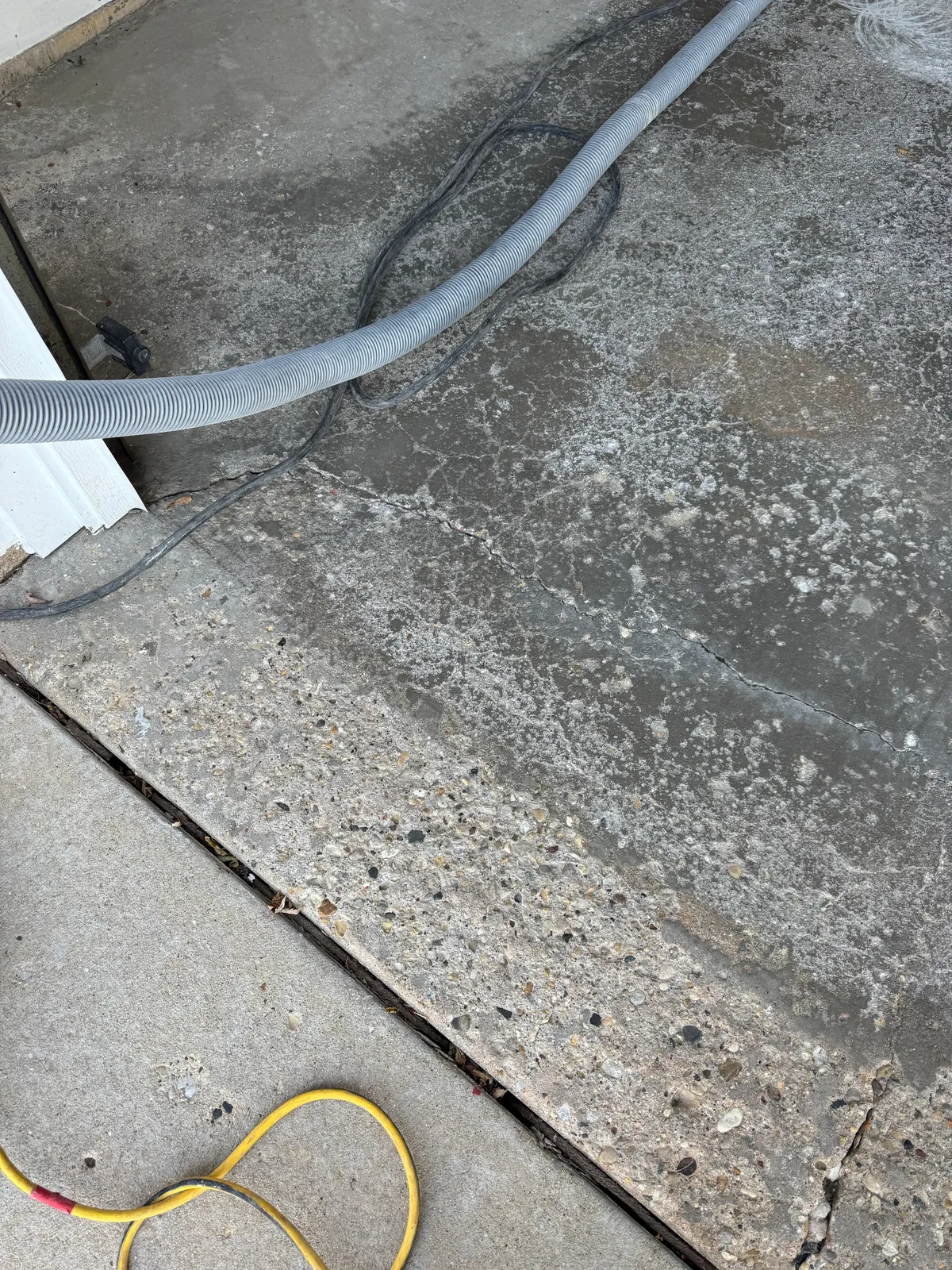

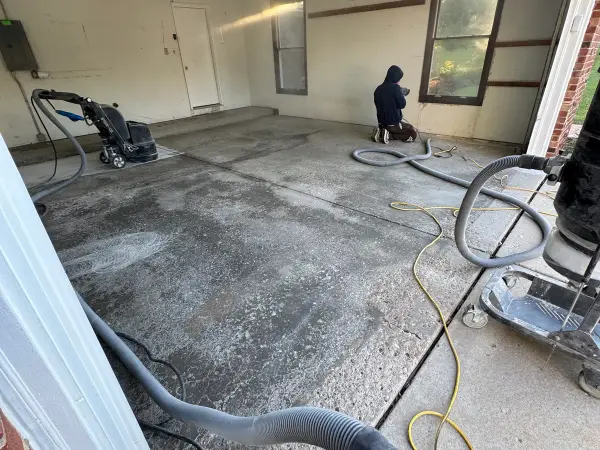

New concrete still needs prep, though. A fresh slab can have a smooth surface sheen that a coating doesn't grip well, so we cleaned off that sheen and any contaminants, then went over the entire floor with diamond tooling. Diamond grinding the slab opens up the top of the concrete and leaves an even profile, a texture a bit like fine sandpaper, so the base coat can lock in. It's the step that decides how well everything on top holds.

Once the floor was ground, we put down the polyurea base coat, the first layer of our polyurea garage coating system. We broadcast decorative flakes into it to rejection, which means we kept adding flake until the base coat couldn't take any more. After it set, we scraped and vacuumed off the loose flakes and sealed everything under a clear polyaspartic topcoat. We also broadcast aluminum-oxide aggregate, a fine grit, into the topcoat across all 950 square feet for better traction underfoot.

The whole install took one day, and we cleaned up the site before we left. The floor was walkable after about 12 hours and ready for full use, cars included, after about 48 hours. If you've got a newer garage slab with no cracks or old coating, this job is a good picture of what yours could look like: the effort goes into grinding and layering, not into repairs.

Services on this job

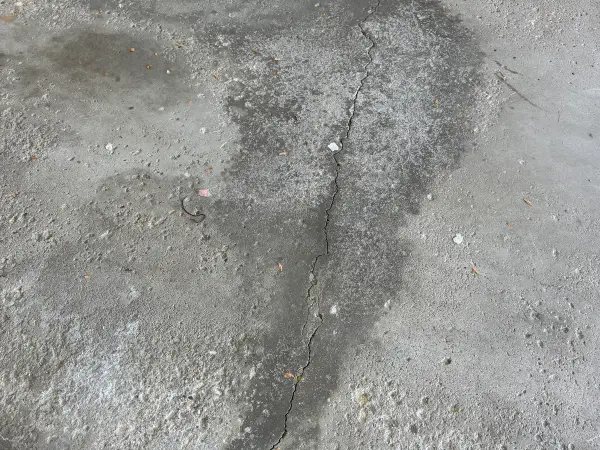

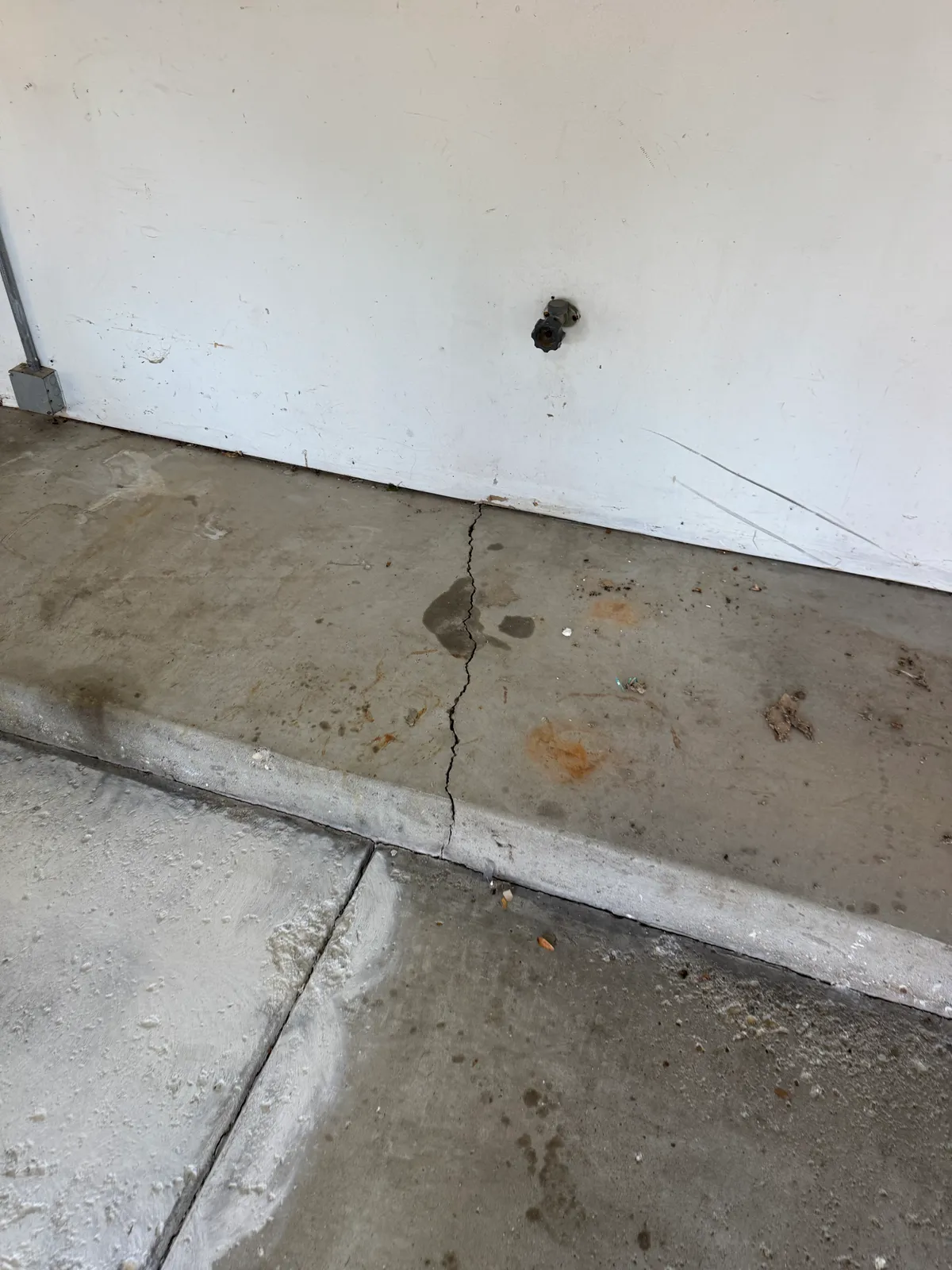

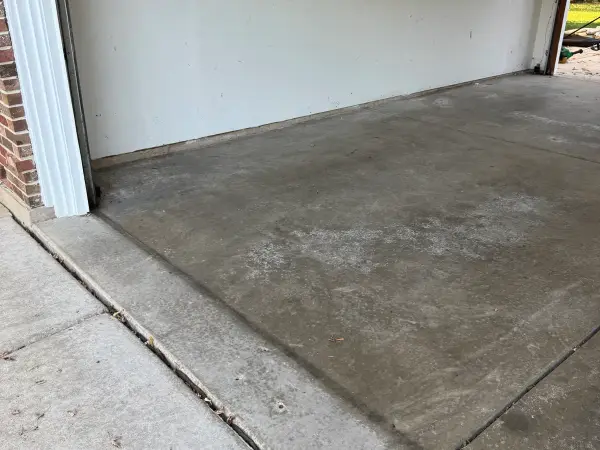

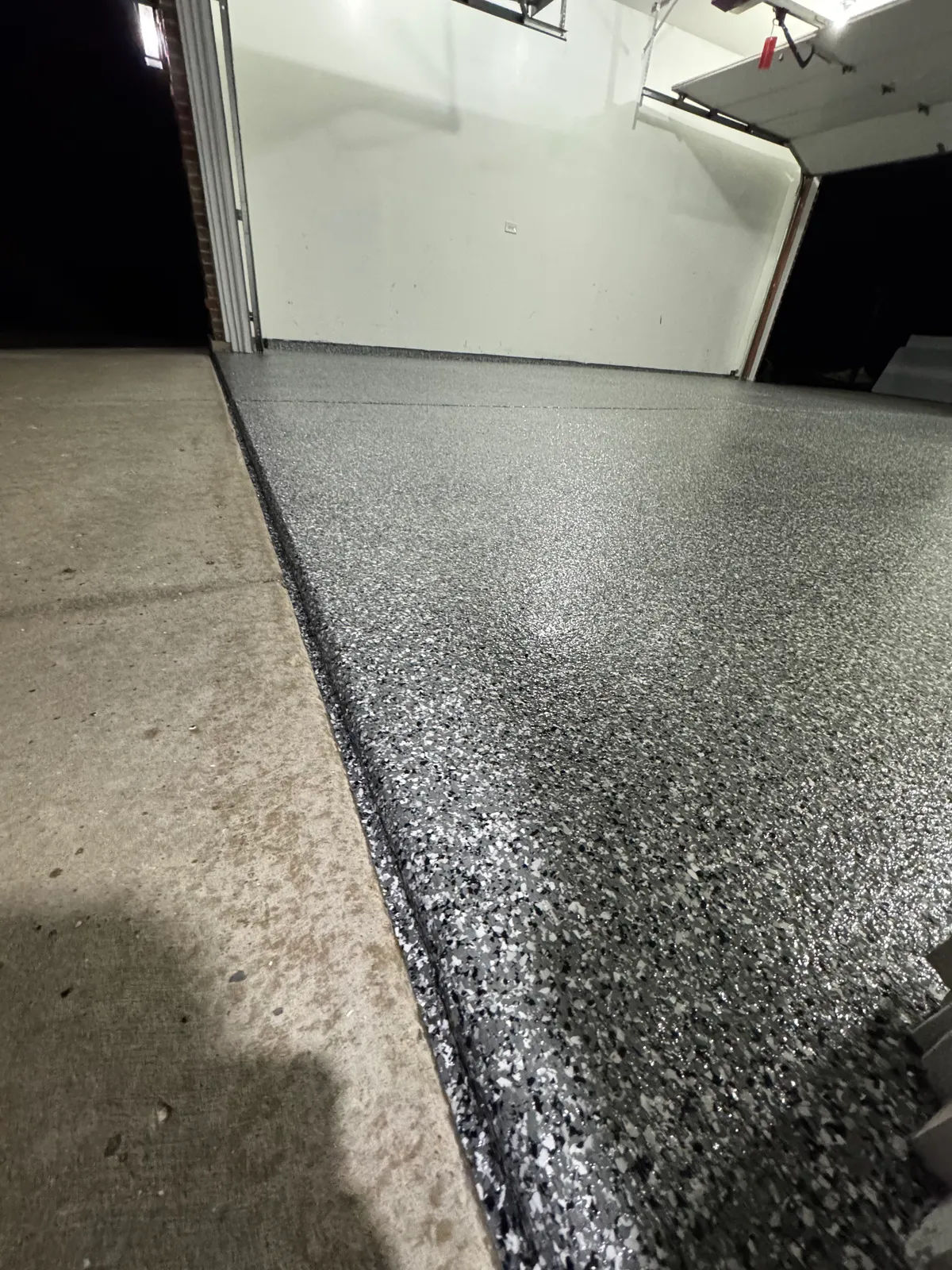

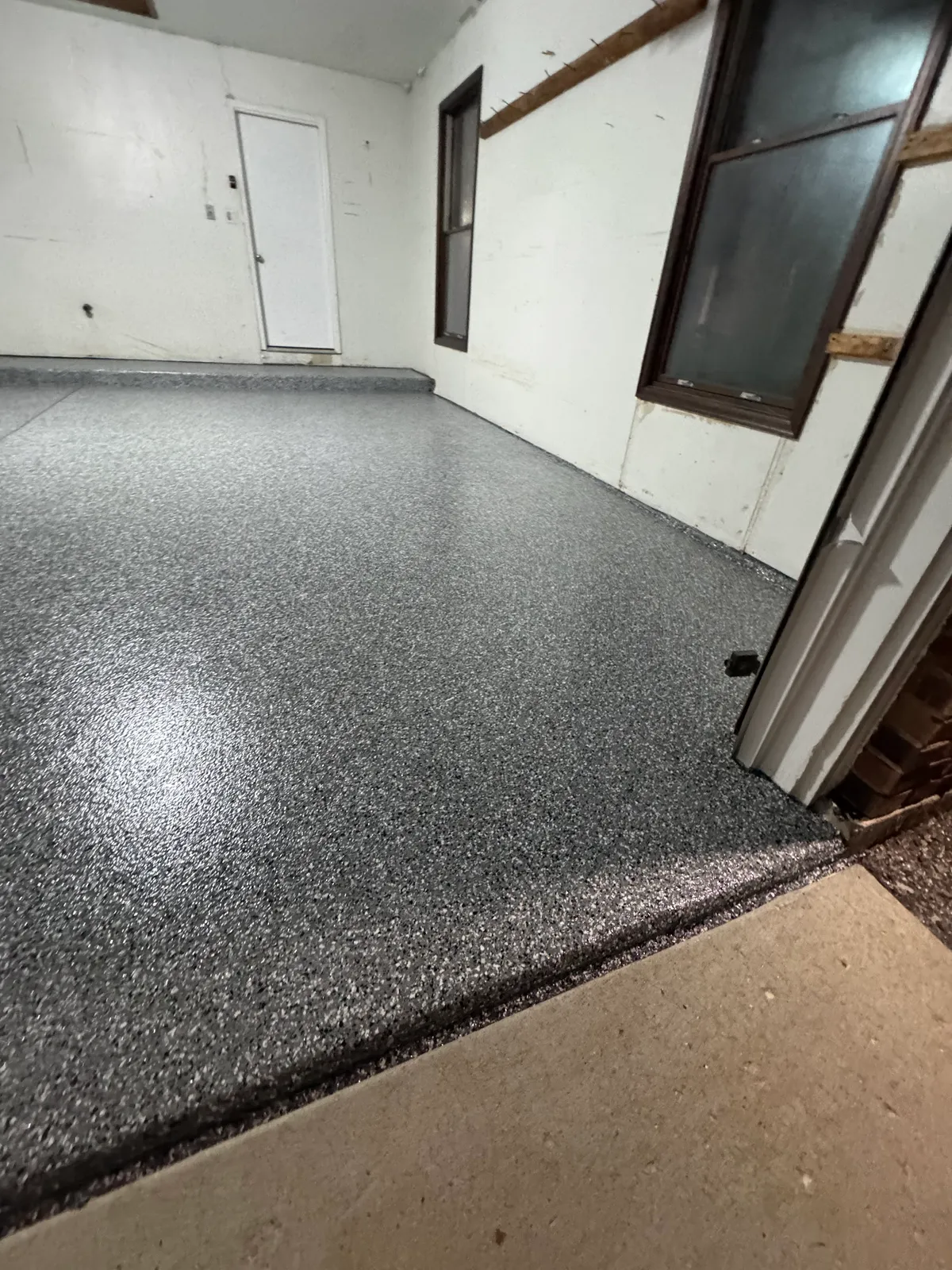

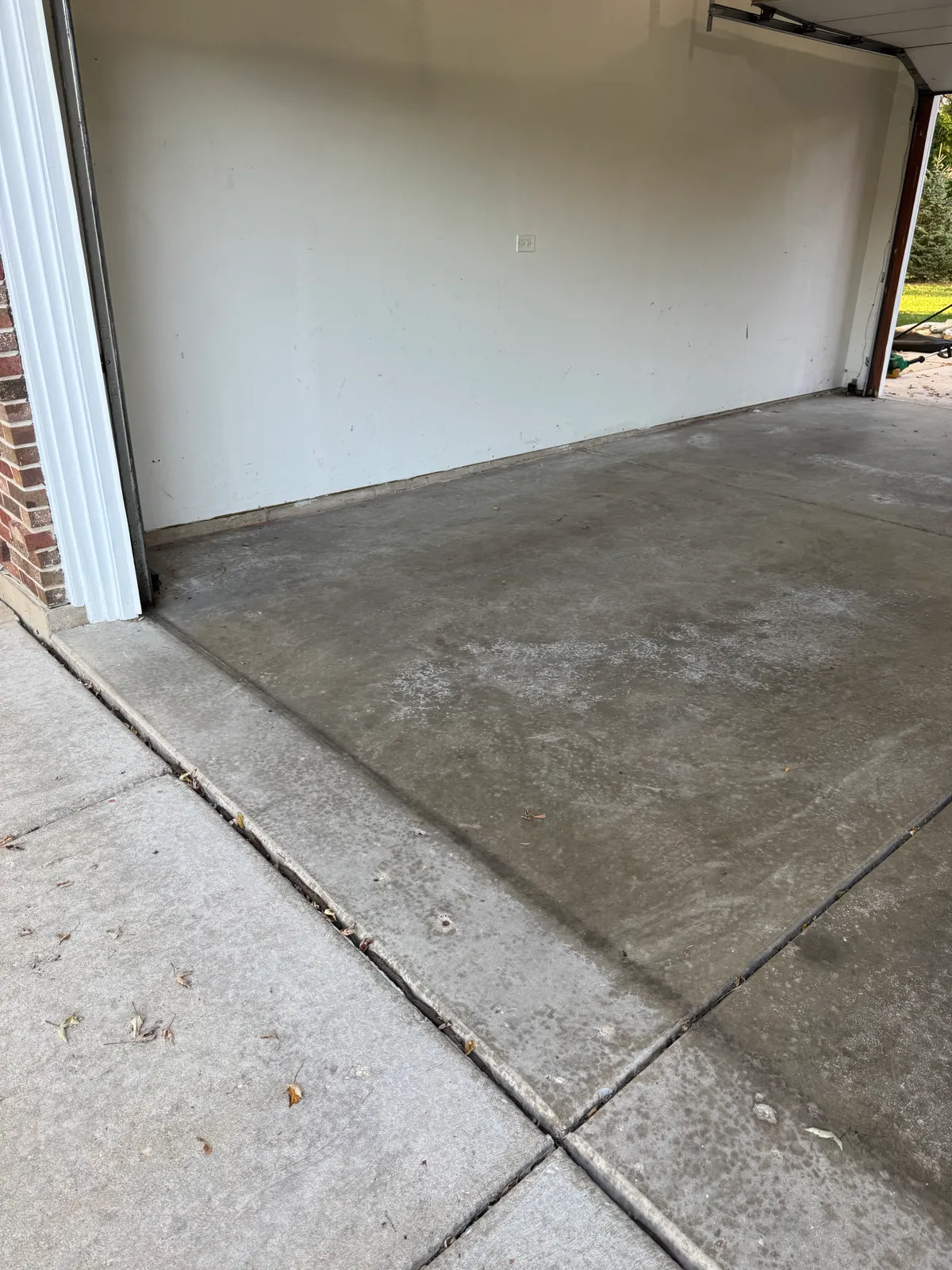

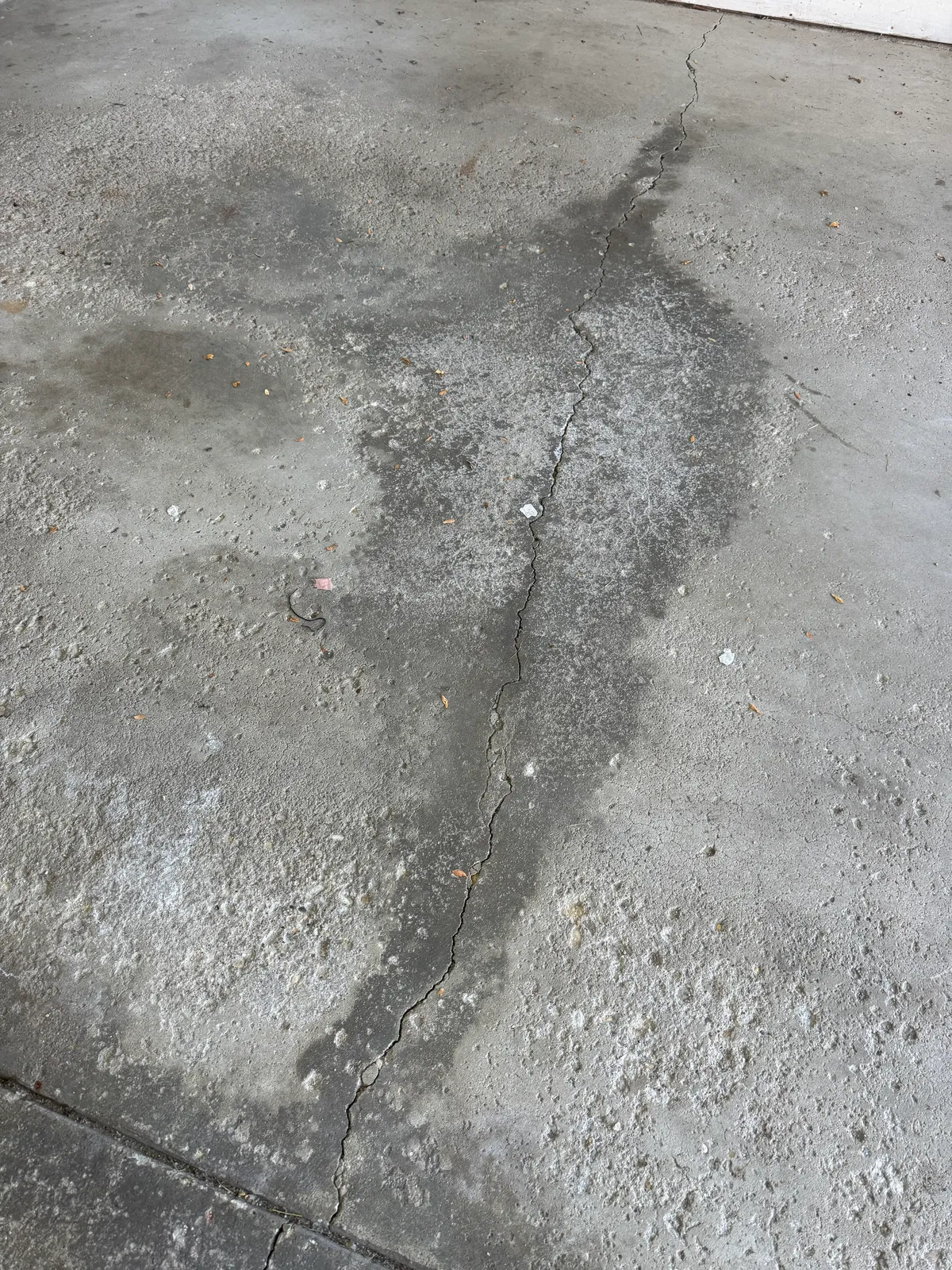

After: Polyurea flake 4-car garage floor in Hawthorn Woods, IL Before: Polyurea flake 4-car garage floor in Hawthorn Woods, IL
Before & after: drag to compare

How we installed it

  1. 1Polyurea (Base Coat)
  2. 2Decorative Flakes
  3. 3Polyaspartic (Top Coat)
  1. Surface Preparation

    • Remove surface sheen and contaminants
    • Diamond grinding for proper surface profiling and adhesion
    • Repair cracks and patch imperfections
  2. Base Coat & Flake Application

    • Apply Polyurea base coat
    • Broadcast decorative flakes 100% to rejection
  3. Top Coat & Cleanup

    • Scrape and vacuum excess flakes
    • Apply clear Polyaspartic top coat
    • Job site cleanup

Also on this job

  • Slip Resistance (aluminum oxide) (950 sq ft) — Aluminum-oxide aggregate broadcast into the topcoat to raise the coefficient of friction and improve underfoot traction.

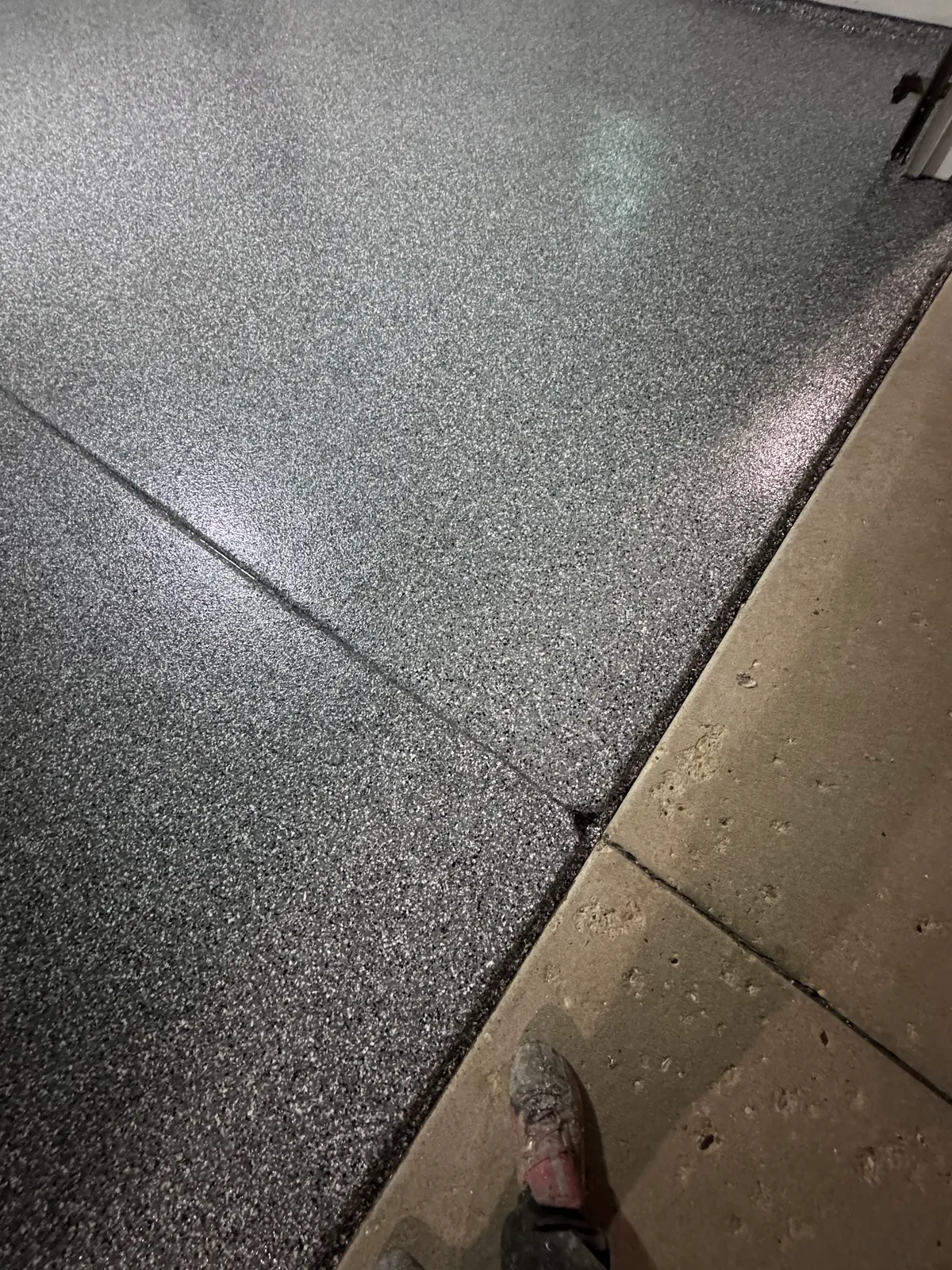

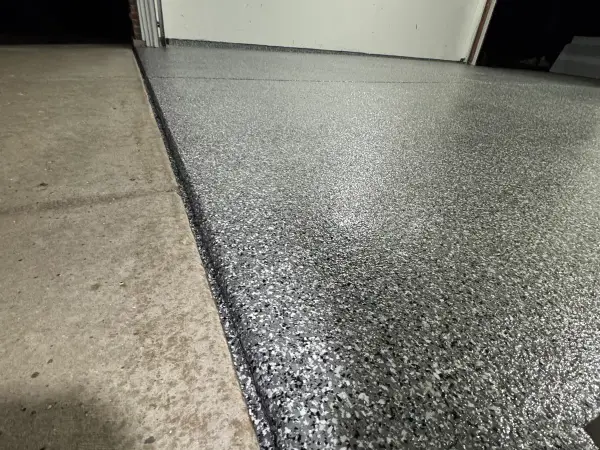

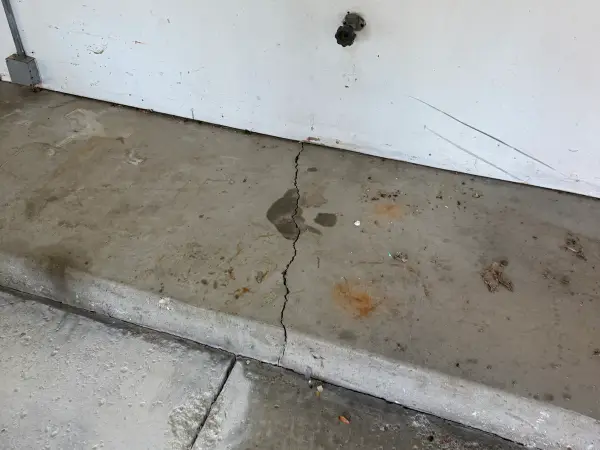

Project photos

More from our Mundelein team

Had work done by our Mundelein office?

Scan the code or leave a Google review. It helps neighbors choose with confidence.

Questions about this project

How much did this 4-car garage floor coating in Hawthorn Woods cost?

This 950 sq ft polyurea flake floor with an aluminum-oxide slip-resistant topcoat came to $4,965. Polyurea-polyaspartic flake floors typically run about $5.50 to $7 per square foot installed, and a standard two-car garage of roughly 400 to 500 sq ft is usually $2,000 to $3,500. We give an exact price only after an in-person inspection.

Does new concrete need to be ground before it's coated?

On this job the slab was new, with no cracks and no old coating, and we still diamond ground the whole floor first. Our prep always starts with diamond grinding, followed by crack and pit repair where it's needed, then the base coat, the flake broadcast and a clear topcoat.

How long until we can park on a polyurea garage floor?

This Hawthorn Woods garage was installed in one day. It was walkable after about 12 hours and ready for full use, cars included, after about 48 hours. Temperature and humidity can change cure times.

Do you offer a warranty and flake color choices?

Eligible residential garage installs come with a limited lifetime warranty. You can choose from 29 flake color blends for your floor. For a free estimate, call our Mundelein team at (847) 999-6330.
